Additional Procedures

Creating Graphic Symbol Reference
  1. In System Browser, select Application View.
  1. Select Applications > Graphics.
  1. Select the Graphics tab.
  1. Select the View tab.
  1. Select the Library Browser check box.
  1. In the Library Browser dialog box, select library Global_NodeMap_HQ_1 from the drop-down list.
  1. Select the symbol.
  1. Right-click the symbol and select Copy reference.
  1. Perform the next steps in the Operation tab and Symbol reference tab (as of step 8 d).



Activate a Non Active Object

Scenario: By default, not all applications in the Lite User Interface configuration are active. For the inactive applications, the Configuration ID is set to 999,999. To activate an application, the Configuration ID number must be changed.

Information

NOTE:
This change is at HQ level, after a Desigo CC version upgrade, the applications must be activated again. It is recommended to document the application settings before any update.

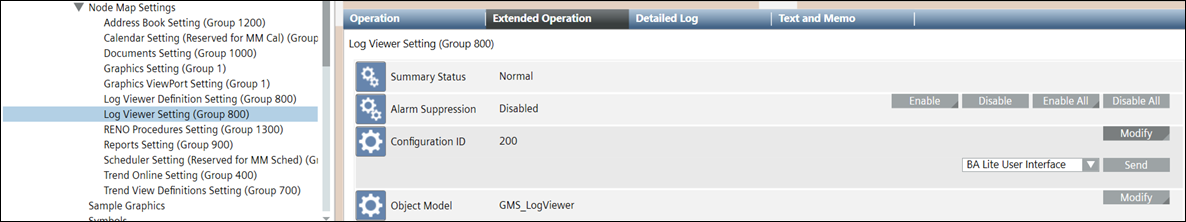

  1. Select Project > System Settings > Libraries > L1-Headquarter > Global > Lite UI Settings > Node Map Settings > desired object type, for example, Log Viewer Setting.

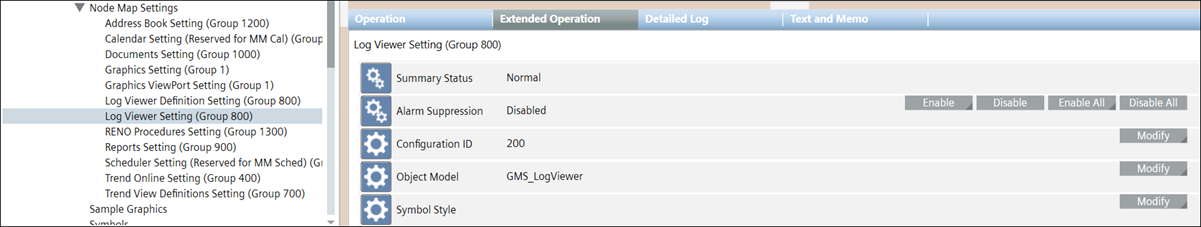

  1. In the Extended Operation tab, select the Configuration ID property.
    a. Click Modify.
    b. In the drop-down-list, select the desired BA Lite User Interface.

    c. Click Send.
  • The application is visible in the Lite User Interface.
Information

NOTE:
If a standard application must not be visible in the Lite User Interface, set the application to Configured but inactive.
