GAMMA Graphic Templates

The following graphic templates are provided with this integration to graphically represent the GAMMA building control systems.

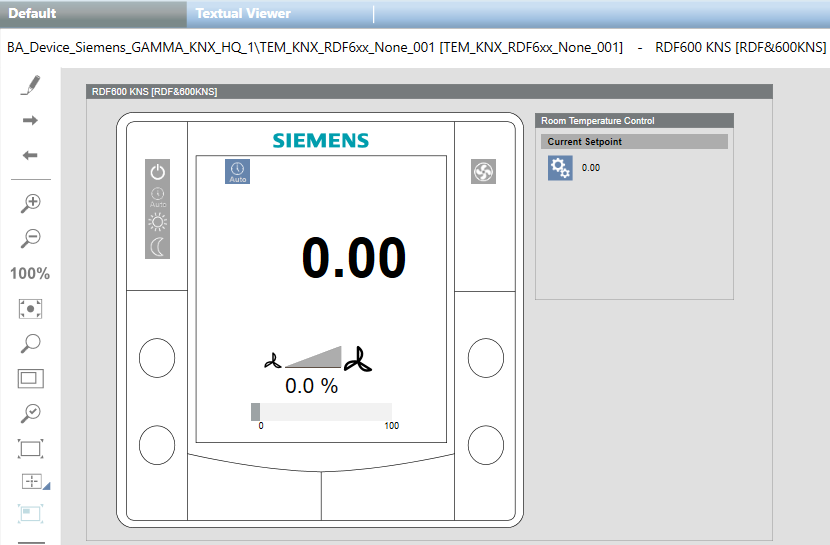

TEM_KNX_RDF6xx_None_001

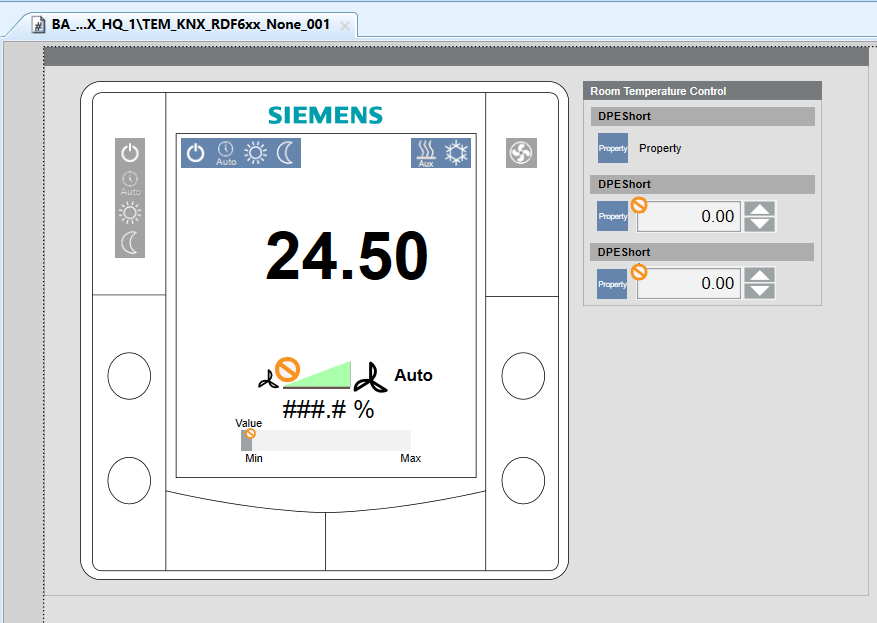

In Engineering mode, this is graphic template for the RDF600KN and RDF600KNS flush mount room thermostats.

In Operating mode, this is the graphic for the RDF600KN and RDF600KNS flush mount room thermostats.

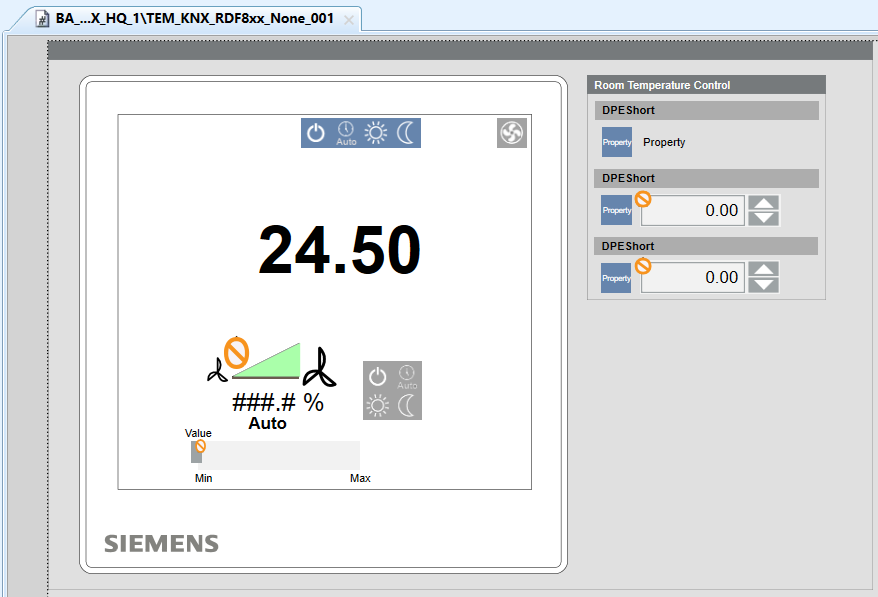

TEM_KNX_RDF8xx_None_001

In Engineering mode, this is the graphic template for the RDF800KN and RDF880KN touchscreen flush mount room thermostats.

In Operating mode, this is the graphic for the RDF800KN and RDF880KN touchscreen flush mount room thermostats.

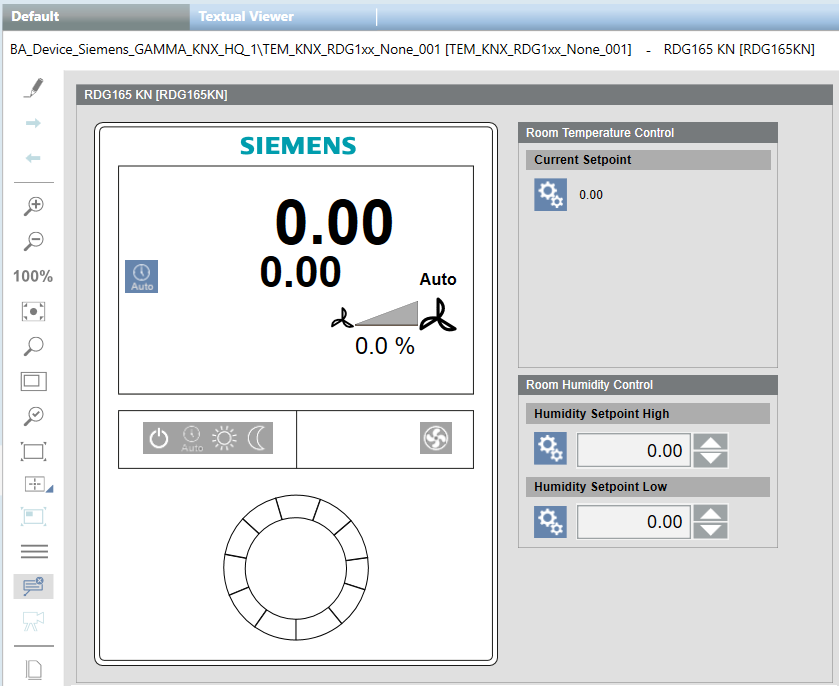

TEM_KNX_RDG1xx_None_001

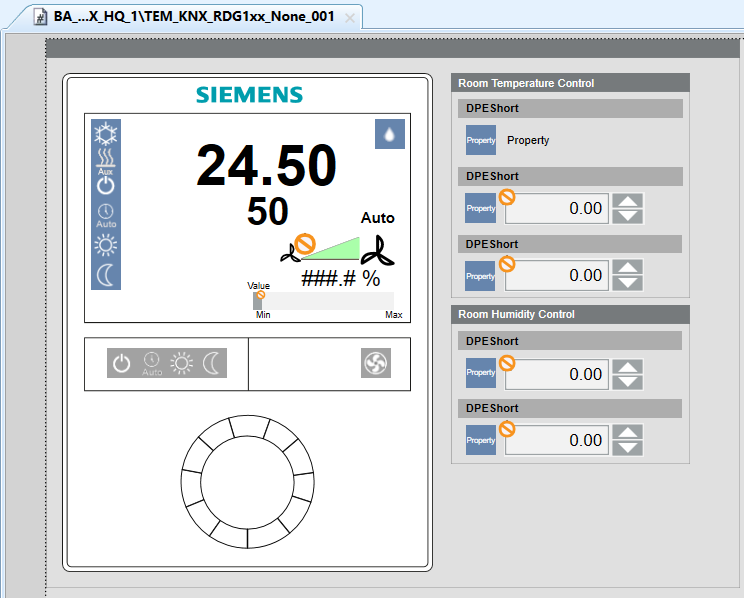

In Engineering mode, this is the graphic template for the RDG100KN, RDG160KN, and RDG165KN room thermostats.

In Operating mode, this is the graphic for the RDF800KN, RDG100KN, RDG160KN, and RDG165KN room thermostats.

TEM_KNX_RDG4xx_None_001

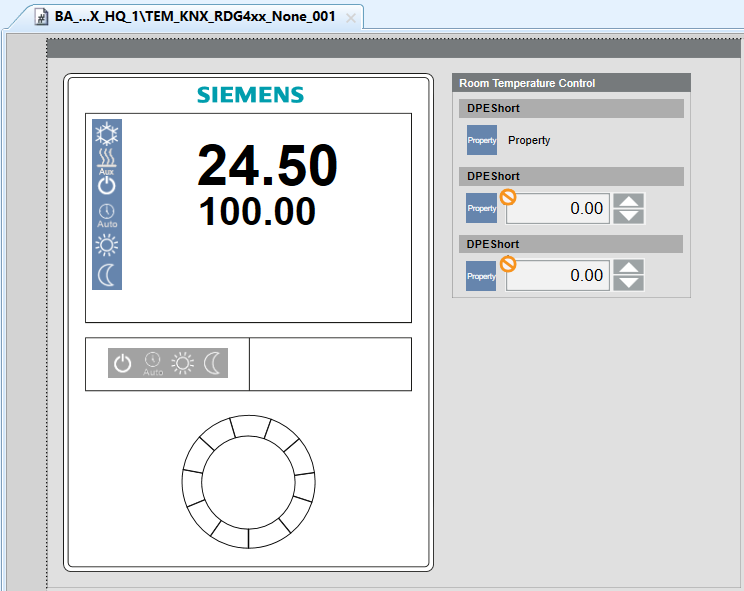

In Engineering mode, this is the graphic template for the RDG400KN and RDG405KN room thermostats.

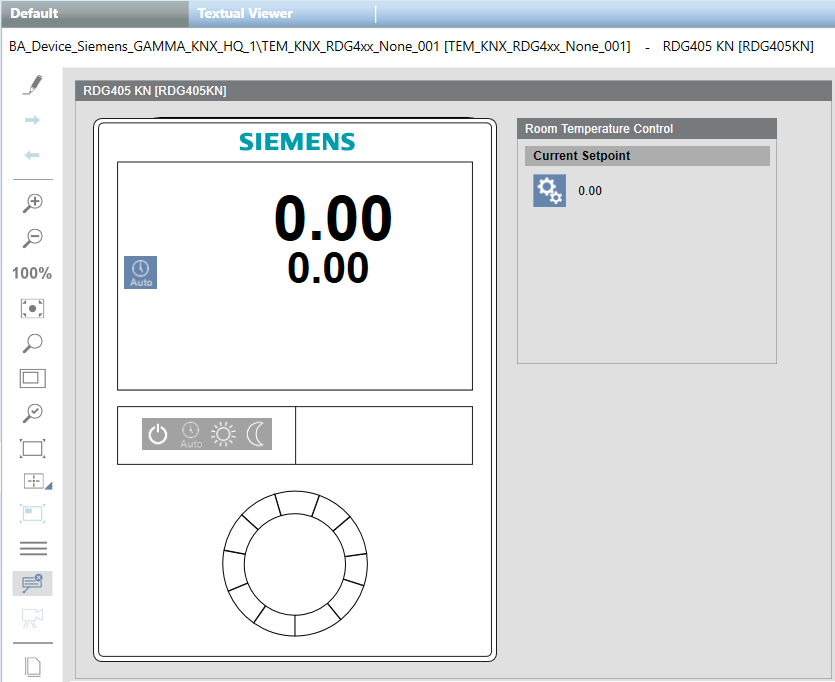

In Operating mode, this is the graphic for the RDG400KN and RDG405KN room thermostats.

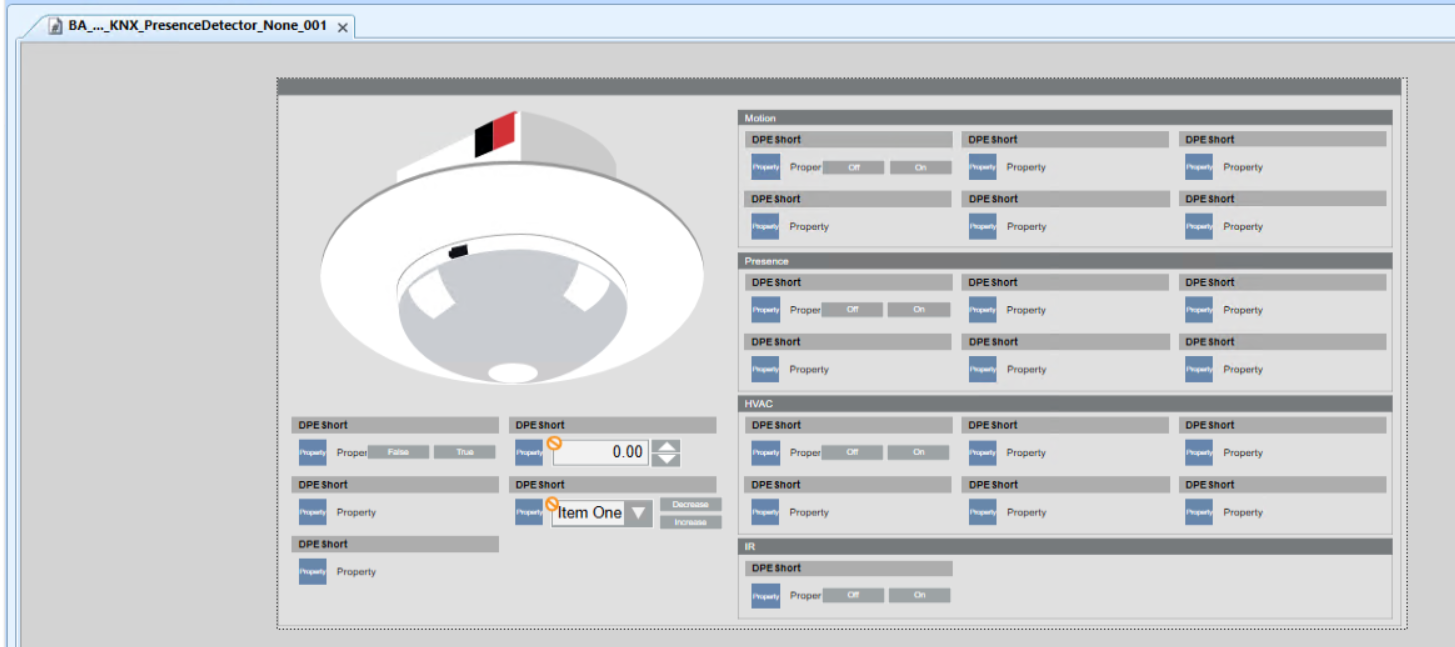

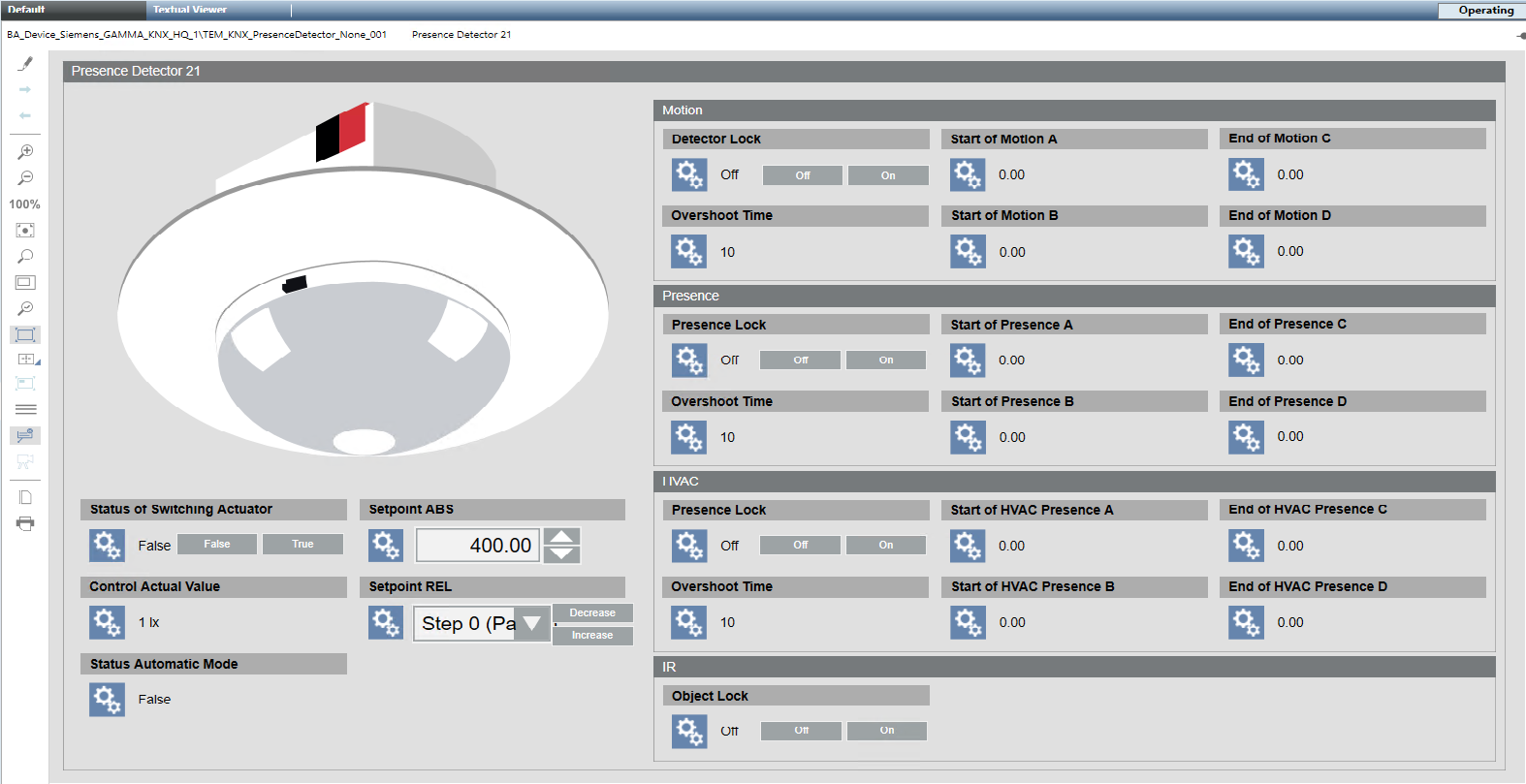

TEM_KNX_PresenceDetector_None_001

In Engineering mode, this is the graphic template for the presence detector.

In Operating mode, this is the graphic for the presence detector.

TEM_KNX_QMX3_Px0_None_001

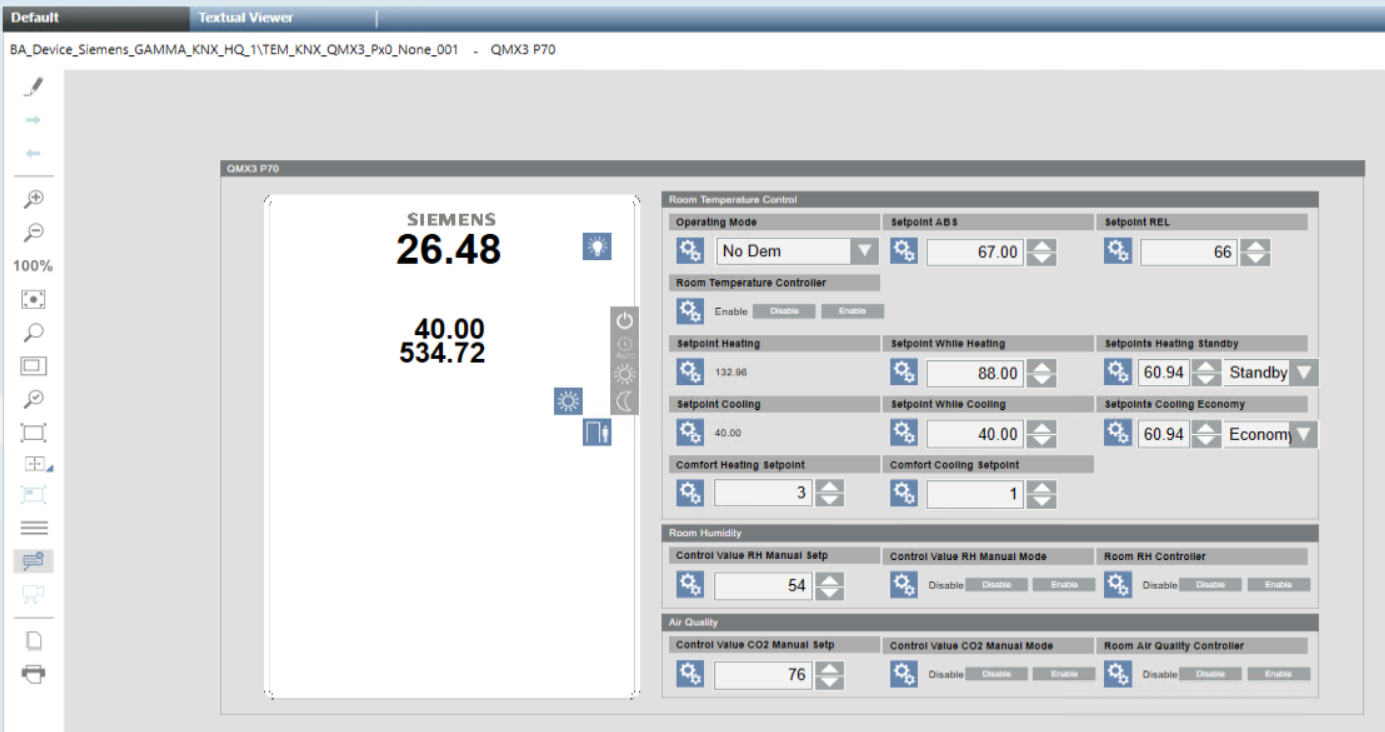

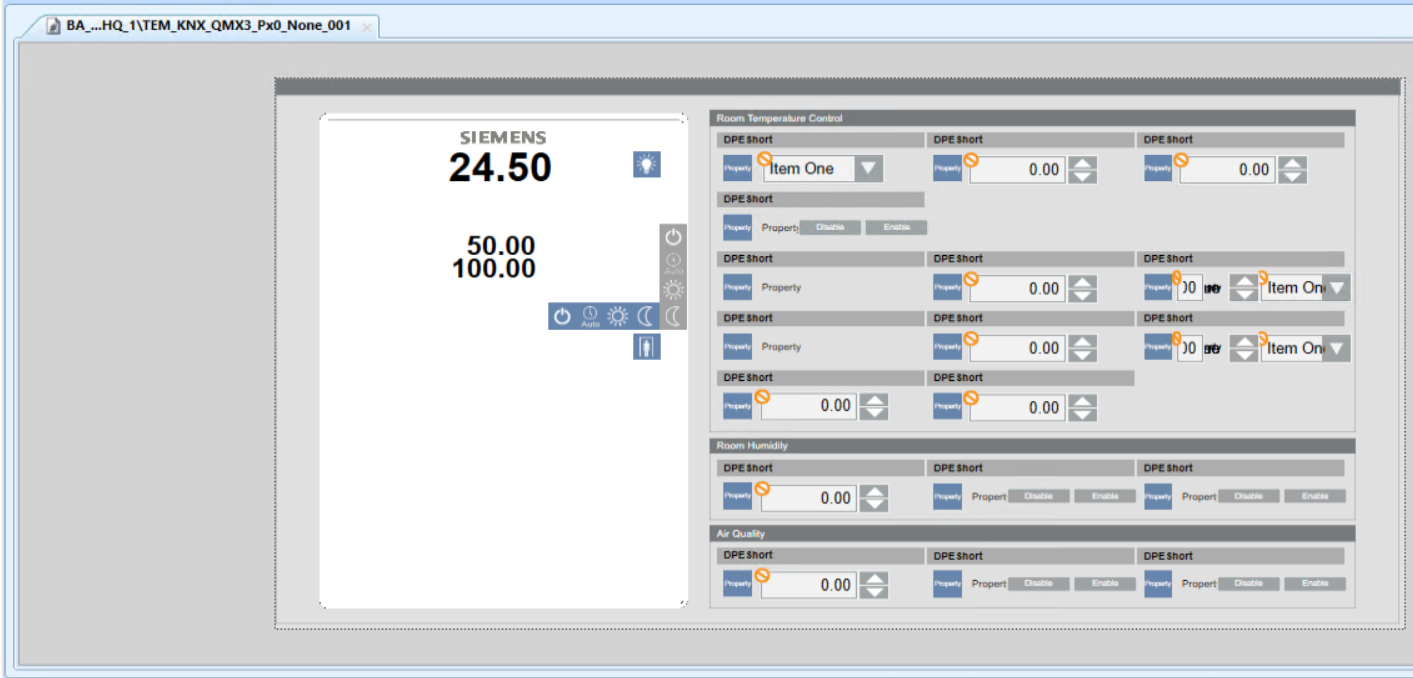

In Engineering mode, this is the graphic template for the QMX3 Px0 room sensor.

In Operating mode, this is the graphic for the QMX3 Px0 room sensor.

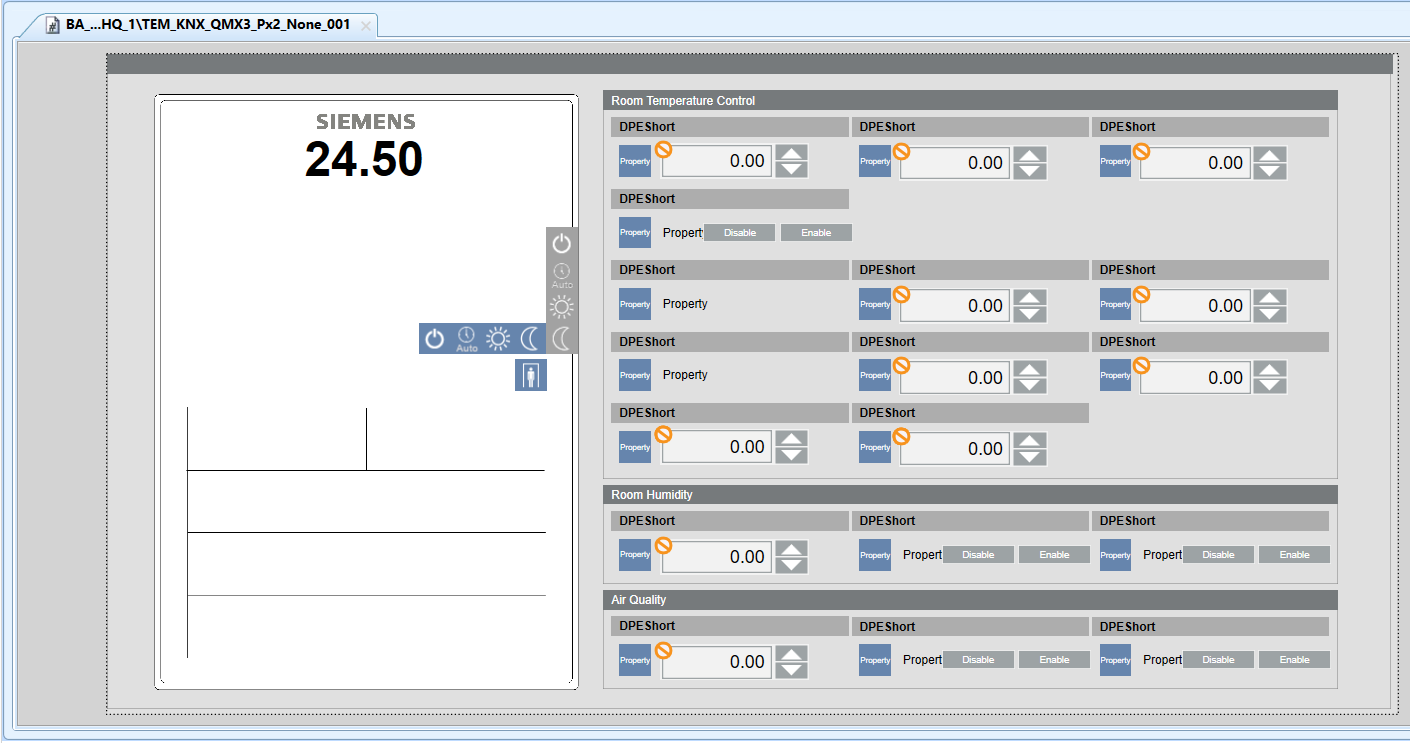

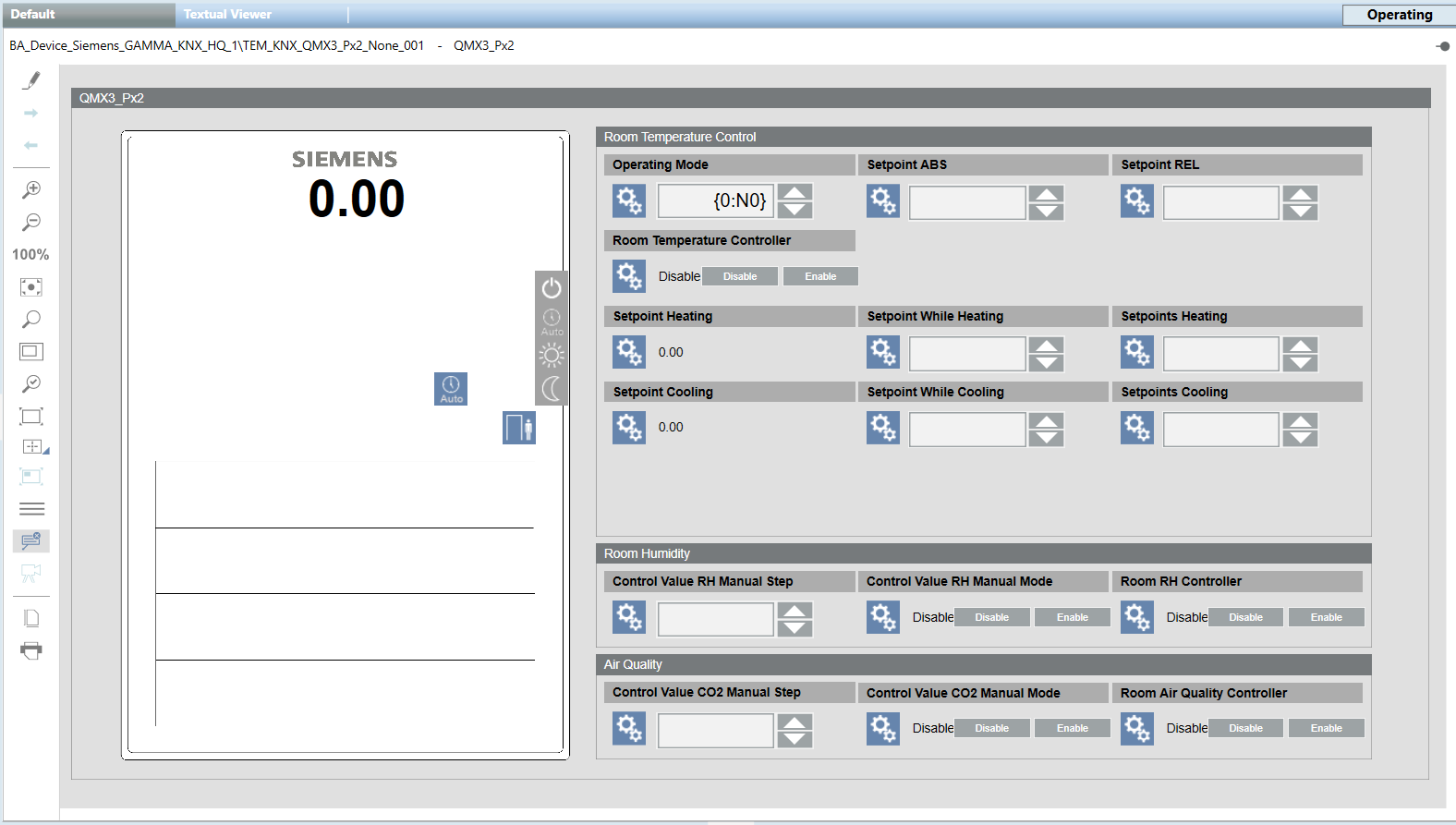

TEM_KNX_QMX3_Px2_None_001

In Engineering mode, this is the graphic template for the QMX3 Px2 room sensor.

In Operating mode, this is the graphic for the QMX3 Px2 room sensor.

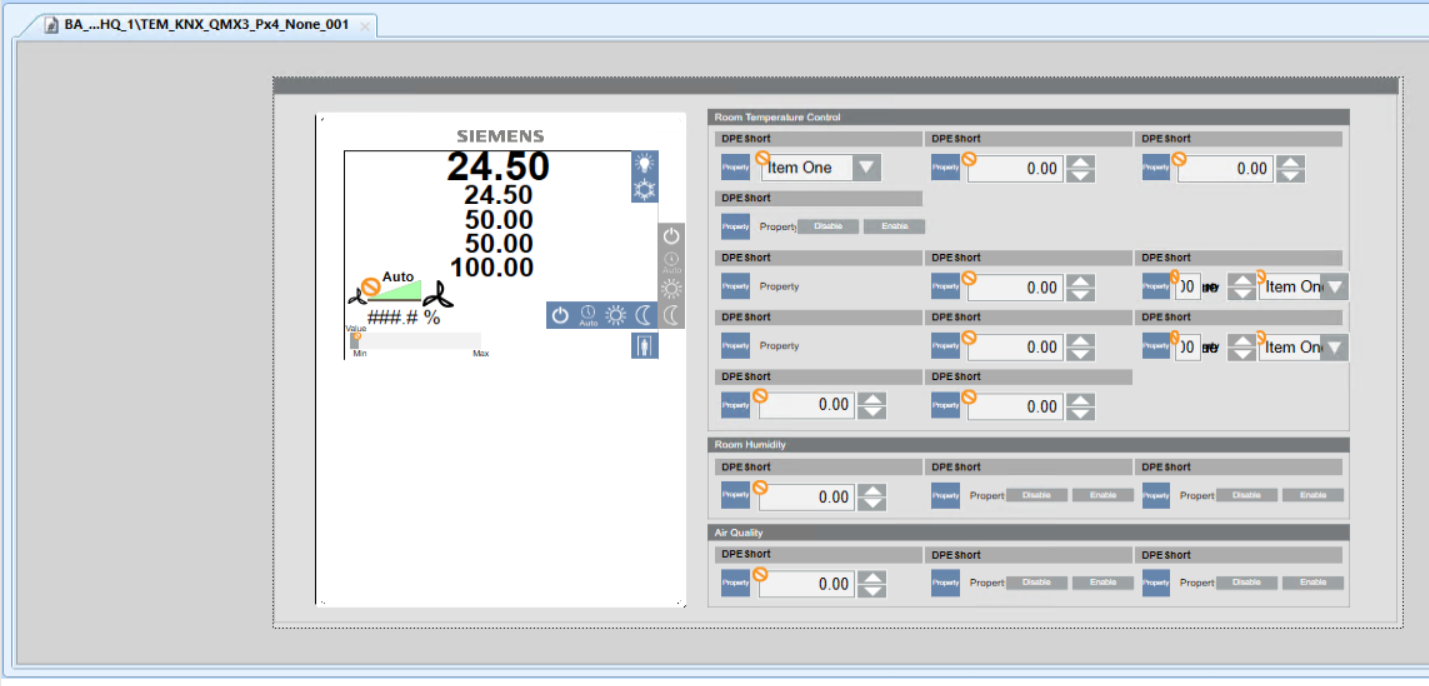

TEM_KNX_QMX3_Px4_None_001

In Engineering mode, this is the graphic template for the QMX3 Px4 room sensor.

In Operating mode, this is the graphic for the QMX3 Px4 room sensor.

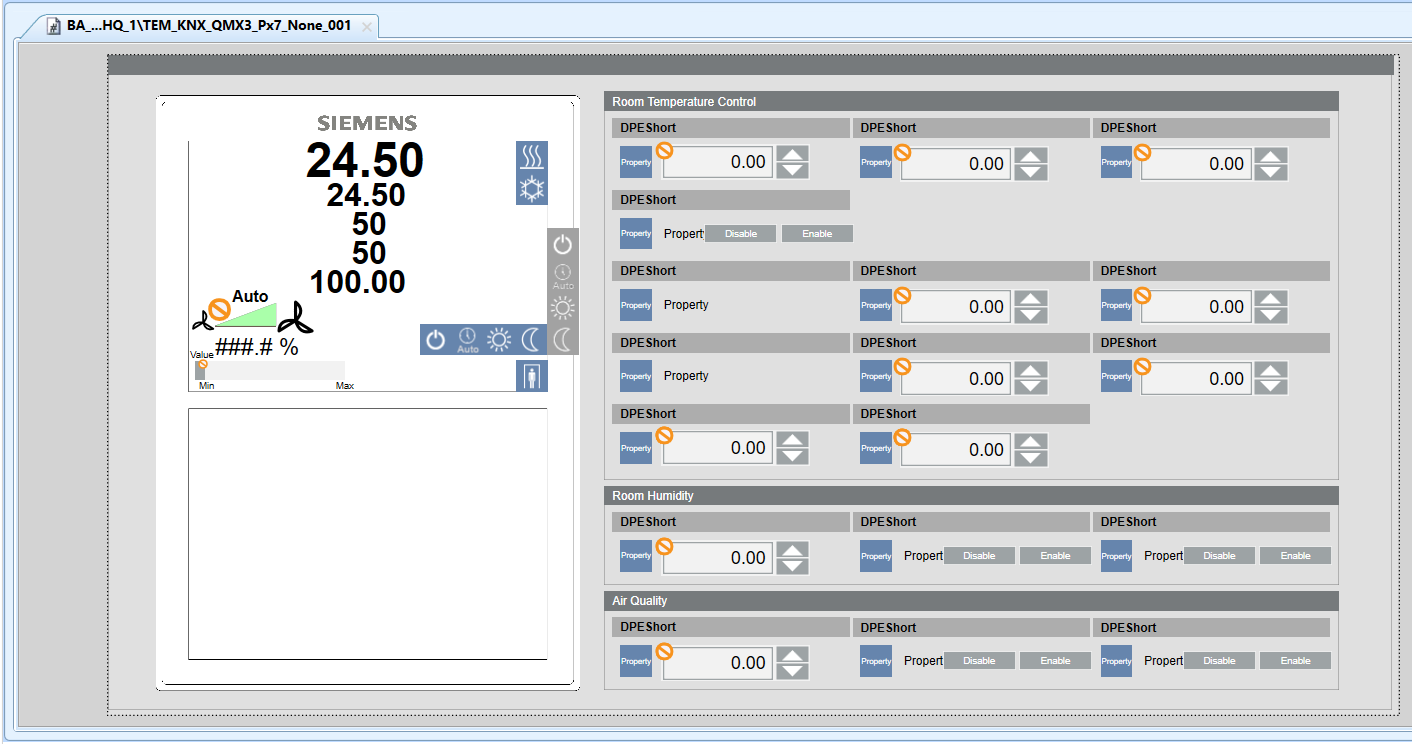

TEM_KNX_QMX3_Px7_None_001

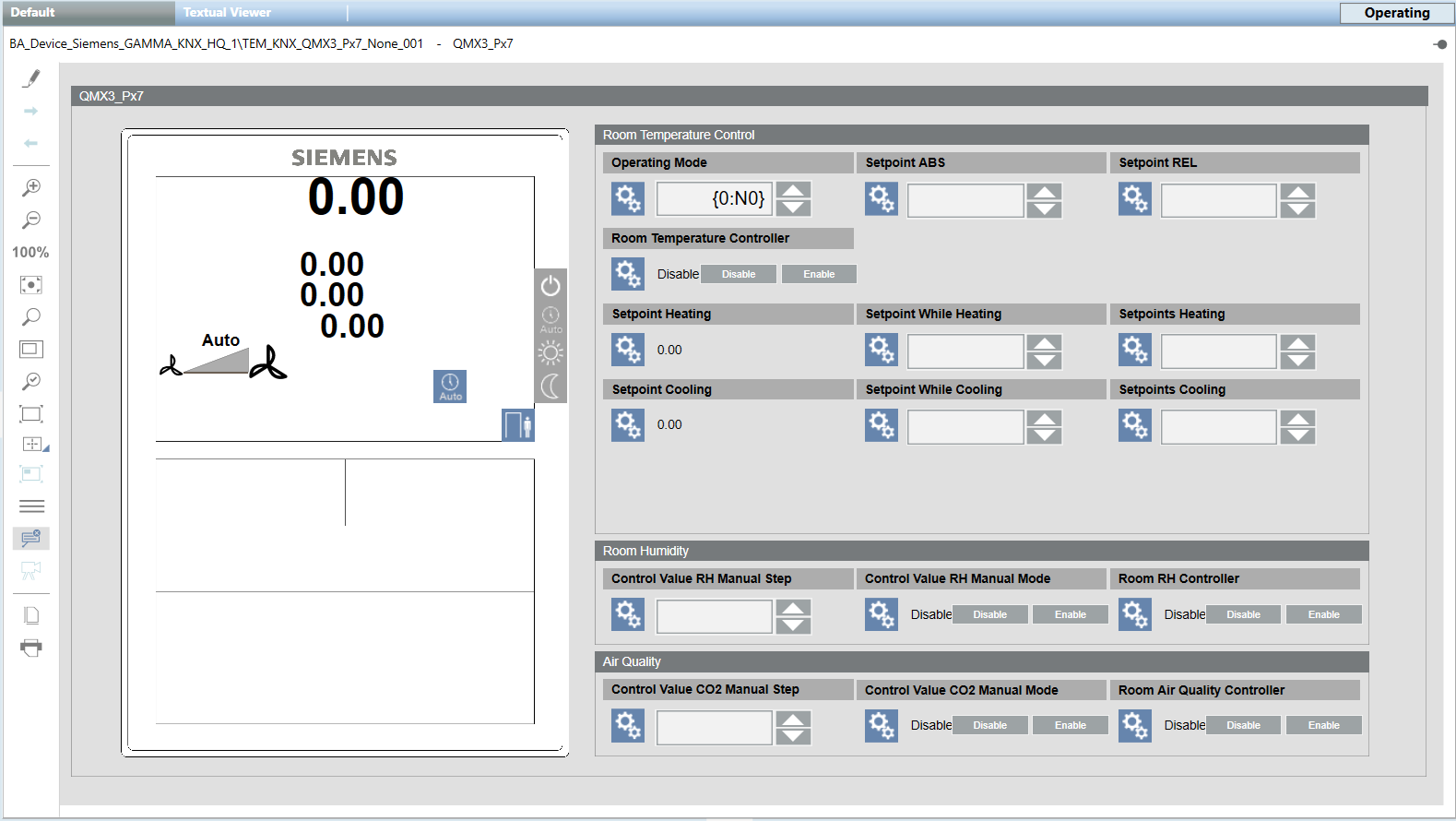

In Engineering mode, this is the graphic template for the QMX3 Px7 room sensor.

In Operating mode, this is the graphic for the QMX3 Px7 room sensor.
