Operating Central Function
Entire sections of a building can be easily controlled using the central function, including:
- Fire Department Emergency Functions
- Switching on Emergency Lighting
- Overriding Emergency Lighting Rest Operating Mode
- Controlling Ventilation
- Raising Blinds
- Standard Operation
- Switching Lights On and Off
- Blinds up and down
- Changing Room Occupancy Mode
|

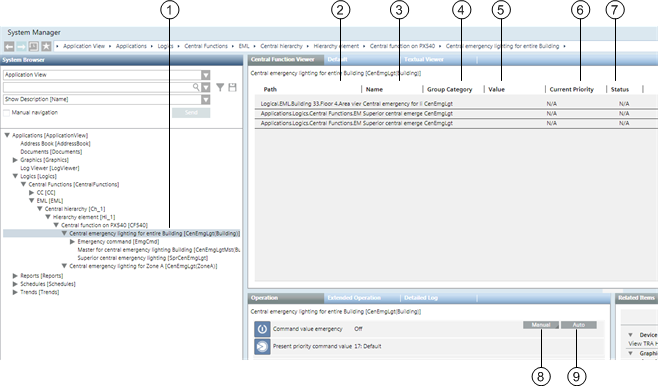

Central Function Viewer | ||
|
|
Name |
Description |
|
1 |
|
Displays the selected group object in the System Browser. |
|
2 |
Path |
Displays the object's hierarchy structure. |
|
3 |
Name |
Displays the object's name. |
|
4 |
Group category |
Displays the group assignment. |
|
5 |
Value |
Displays the object's present value. |
|
6 |
Current priority |
Displays the presently pending BACnet priority for the object. Priorities can be displayed differently for each object. Objects with BACnet priority ≦ 7 cannot be switched. |
|
7 |
state |
Displays the object's state. |
|
8 |
Manual |
Manually switch on or off objects. |
|
9 |
Auto |
Reset objects to automatic mode. |
