Central Room Functions Workspace
The Central Function Editor assigned rooms to a group. Individual rooms can be overridden as per the assigned group when operating using the Central Functions Viewer.
Group members can only be assigned within the same Desigo CC BACnet network and driver.
Distributed System:
The central room function editor only sees group masters and group members who can be reached via the driver of the current Desigo CC BACnet network. In an environment where several Desigo CC servers access the same BACnet field network, only the group masters and group members that are visible via the current driver are seen.
Central Function Editor | |||
| Description | ||

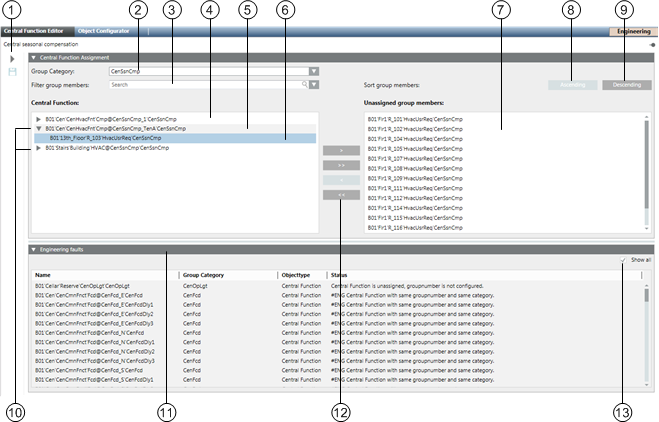

1 | Toolbar. | ||
2 | Group category Indicates the type of group category for loading the data: | ||
| Central operation mode |
| |
| Central operation for lighting | Lighting | |
| Central emergency for lighting | Lighting | |
| Central operation for shading | Blinds | |
| Central emergency function shading | Blinds | |
| Central protection function shading | Blinds | |
| Central service function shading | Blinds | |
| Central façade function for automatic | Blinds | |
| Central seasonal compensation | HVAC application | |
| Supply chain for air | HVAC application | |
| Supply chain for chilled water | HVAC application | |
| Supply chain for hot water | HVAC application | |
3 | Filter members The applicable list can be filtered (central functions and unassigned members). Wildcards are not permitted. Delete the text in this field to remove the filter. | ||
4 | Central function with assigned members Displays a list of available group masters. | ||
5 | Group master Selected group master with one group member. | ||
6 | Group member Selected group member. | ||
7 | Unassigned member Displays a list of not assigned group members. | ||
8 | Ascending Click this button to sort the list ascending. | ||
9 | Descending Click this button to sort the list descending. | ||
10 | Group master/group member The arrow indicates that a group member is assigned to a group master. No arrow means no group member is assigned to the applicable group master. | ||
11 | Configuration Errors Displays a list of group members with a group number that is not assigned an existing group master (Engineering error). | ||
12 | Assignment Buttons Assign/rescind for group master and group members. | ||
13 | Show all check box If cleared, shows all not correct configured group member of this central function type. All incorrectly configured group members are displayed if selected. | ||
Toolbar in Central Function Editor | ||
Symbol | Name | Description |
| Load/refresh current category | Loads the field data or updates the view for the editor for the selected category of the central function and its entries. The progress bar in the status bar shows the current state in case of load data. NOTE: Online connection must be available. |
| Load/refresh all categories | Loads the field data or updates the view for the editor for all central functions and its entries. The progress bar in the status bar shows the current state in case of load data. NOTE: Online connection must be available. |
| Save | Save a changed configuration to the system. |
